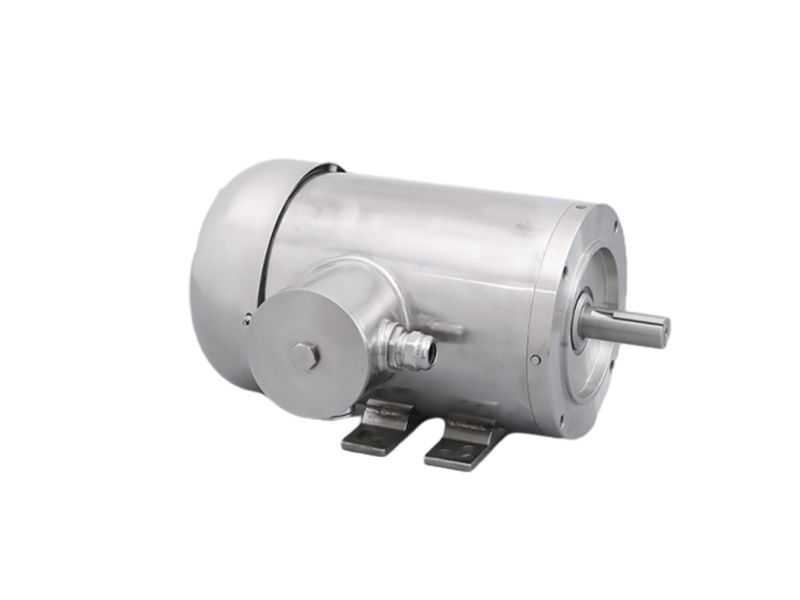

NEMA Stainless Steel Motor
NEMA Stainless Steel Motor
NEMA Stainless Steel Motor

NEMA Stainless Steel Motor

Frame56C-258TC
Power1/3-20HP
Voltage115/230V, 230/460V, 575V, 230/400V, 400/690V
Frequency50 HZ/60 HZ
Insulation levelF
Cooling OptionsTEFC & TENV
Protective ClasslP69K


All stainless steel construction

Two-barrier mechanical seal on the output shaft

Laser marked nameplate

independently and seamless welded feet

Polished stainless steel finish

Share:

Characteristics

The round smooth terminal box, which is machined and welded directly onto the frame of the motor, has fewer places to trap water or dirt. The smooth sanitary surface which is proving again the attention to detail from a hygienic perspective.



All external components including motor shaft are manufactured in 304 stainless steel. This gives excellent resistance to corrosion. No paint to flake off and chemical proof gives a durable solution for hygiene



IP67/lP69K it can be washed away by hot steam, Capable of providing water pressure of 100 bar (1450psi) and temperature of 80+5℃ Protection. Progressing at an angle of 30 degrees (0, 30, 60, and 90 degrees) for 30 seconds at each angle for a total of 120 seconds (2 minutes) can prevent water from entering.

Application

Stainless steel motors designed to meet the severe sanitation requirements of food grade and high pressure washdown motor applications in the pharmaceutical, food and beverage, processing and packaging industries. Like Dairies and milk processing , water supply, cosmetics industry, meat processing industry, all applications in extremely wet environments.

View More

Ordering Information

Specifications and Model: Determine the required specifications and model of the motor, including power, speed, voltage, frequency, etc., to meet the specific requirements of the application.



Environmental Conditions: Consider the operating environment of the motor, including temperature, humidity, corrosive substances, etc., to ensure the selection of appropriate stainless steel material and protection level.



Installation Method: Determine the installation method of the motor, including mounting position, support structure, connection method, etc., to select the appropriate model and configuration during purchase.



Maintenance and Care: Understand the maintenance and care requirements of the motor, including lubrication, cleaning, regular inspection, etc., to ensure normal operation and extend the service life of the motor.



Performance Testing: For critical applications, performance testing may be required to ensure that the motor meets the expected requirements and standards.

View More
