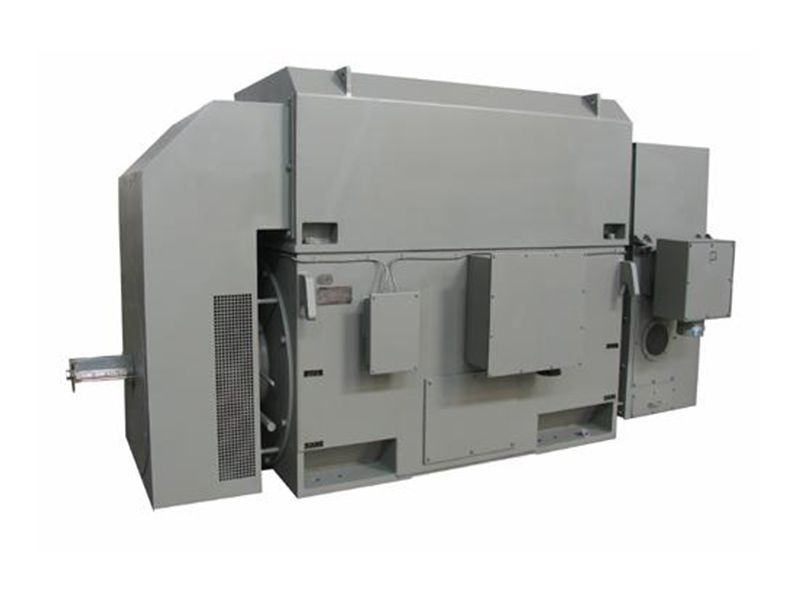

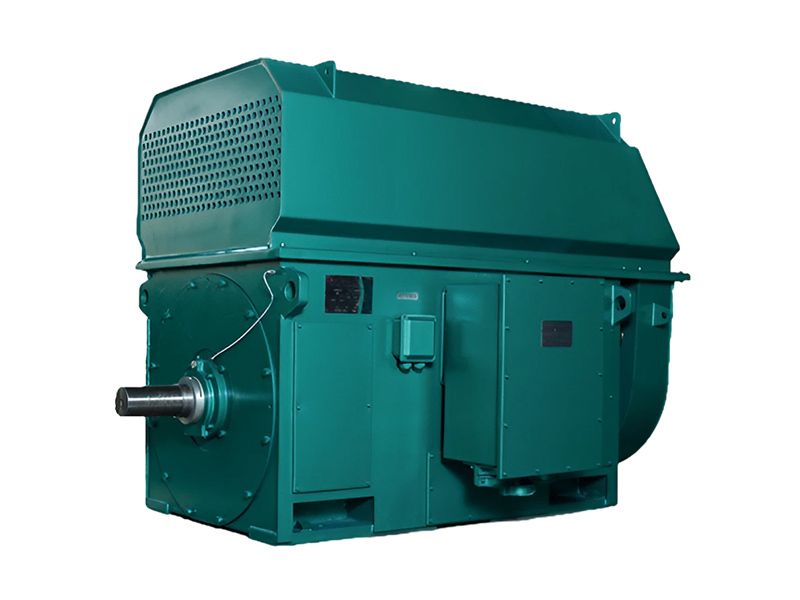

YKK Series High Voltage Three Phase Asynchronous Motor

Frame Size	H355-710mm
Rated voltage	10KV/6KV
Rated Output Power	220KW-2240KW
Protection Class	IP44, IP54
Class of insulation	F
Installation mode	IMB3
Cooling Method	IC611
Number of poles	2\4\6\8\10\12
Environmental conditions	Altitude should be lower than 1000 m above sea level; -15°C ~+40°C

Inquire Now Next Product

Characteristics

This series of motors has the characteristics of light weight, excellent rigidity, high efficiency, low noise and small vibration.

Application

Can be widely used in water plants, power stations, petrochemicals, metallurgy, fans and other industries.

Ordering Information

● This catalogue is for the user's information only. Please excuse that if there are any changes to the product, no additional notes will be made in advance.

● When ordering, please note the rating data, such as motor type, power, voltage, speed, insulation class, protection class, mounting method, etc.

● We can design and manufacture special motors according to customer requirements as follows

1. Special voltages, frequencies and powers

2. Special insulation and protection classes

3. With left-hand terminal box, double shaft ends and special shafts

4. High temperature motors or low temperature motors.

5. Highland or outdoor use

6. Higher power or special service factors

7. With heating, bearings or windings pt100, ptc, etc.

8. With encoder, isolated bearings or isolated bearing construction.

9. Other requirements.
