Which Motor Cooling Method is the Best? How to Accurately Choose the Right Motor Cooling Method Based on Actual Operating Conditions?

Which Motor Cooling Method is the Best? How to Accurately Choose the Right Motor Cooling Method Based on Actual Operating Conditions?

In industrial applications, the cooling method of a motor is a critical factor that affects its performance and lifespan. Different motor cooling methods have their own advantages and disadvantages. Choosing the right cooling method not only ensures that the motor runs efficiently and avoids overheating but also enhances the motor's reliability and stability. So, which motor cooling method is the best? How can we accurately select the right motor cooling method based on actual operating conditions?

Common Motor Cooling Methods

1.Natural Cooling (IC01)Natural cooling is the simplest cooling method, where heat is dissipated through the motor's outer shell by natural convection. This method is suitable for small motors and environments with lower temperatures. Its advantage lies in its simple structure and low cost, but the cooling effect is relatively poor, which limits its use to applications with less stringent temperature requirements.

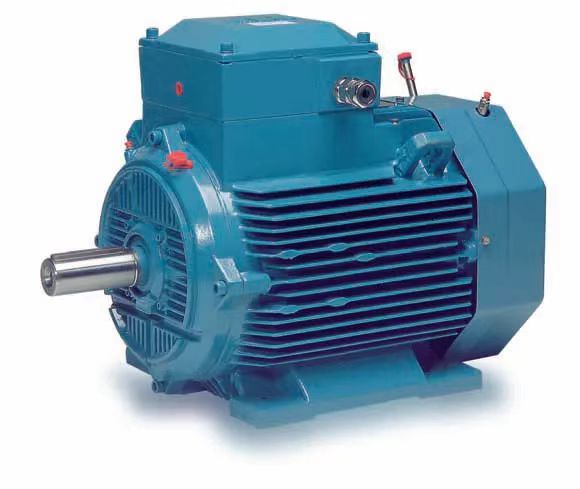

2.Forced Air Cooling (IC411)Forced air cooling uses an external fan or built-in fan to improve air circulation and enhance heat dissipation. This method is suitable for motors with medium power and can ensure stable operation in higher temperature environments. It is commonly used in applications such as pumps and fans, where reliable performance is required.

3.Water Cooling (IC71W)Water cooling is a method that uses water to absorb the heat generated by the motor. It is suitable for large power motors and harsh operating environments. Water-cooled motors offer much higher heat dissipation capacity than natural cooling or air cooling, and they can operate stably under high loads and high-temperature conditions. This method is widely used in industries like chemical, metallurgy, and mining.

4.Oil Cooling (IC71O)Oil cooling uses circulating oil to absorb the heat from the motor and transfers it to a cooler. This method is typically used for extremely high-power motors. Oil-cooled motors are widely applied in industries such as petroleum and chemicals, especially in harsh environments where high temperatures and heavy loads are common.

5.Hybrid Cooling (IC81W)Hybrid cooling combines forced air cooling and water cooling, using both methods to provide effective heat dissipation. This cooling method is suitable for motors that require high cooling efficiency and can adapt to various operating conditions. Hybrid cooling is commonly used for motors running under heavy loads and long operating hours.

How to Choose the Right Motor Cooling Method Based on Actual Operating Conditions?

1.Ambient Temperature and Humidity In high-temperature environments, motors are more prone to overheating, so a more powerful cooling method is needed, such as water cooling or hybrid cooling. On the other hand, environments with high humidity may require cooling methods with better corrosion resistance, such as water-cooled or oil-cooled motors.

2.Motor Power The higher the motor power, the more heat it generates. High-power motors require stronger cooling systems. For large power motors, water cooling or oil cooling is generally recommended to ensure stable operation under heavy loads and to prevent overheating.

3.Operating Duration The longer the motor operates, the higher the cooling demand. Motors that run for extended periods may need more efficient cooling methods, such as water cooling or hybrid cooling, to maintain stable performance even under continuous or heavy operation.

4.Environmental Contamination and Corrosive Elements In environments with significant pollutants or corrosive gases (such as chemical plants), it is necessary to select cooling methods that offer enhanced corrosion resistance, like water-cooled or oil-cooled motors that use corrosion-resistant materials.

5.Maintenance and Cost Considerations Different cooling methods come with varying maintenance requirements and costs. Natural cooling and forced air cooling motors have simple structures and are easier to maintain, making them suitable for small and medium-sized motors. Water-cooled and oil-cooled motors, while offering higher cooling efficiency, come with higher initial costs and maintenance complexity. They are more suitable for large or specialized motors in harsh environments.

There is no “best” motor cooling method in an absolute sense, only the one that best fits the application. By considering factors such as the operating environment, motor power, operating time, and maintenance costs, you can choose the most suitable cooling method for different applications. A proper cooling method not only ensures that the motor operates in its optimal condition but also significantly extends its lifespan and improves its efficiency.
