What are the reasons for the high efficiency of permanent magnet motors?

Permanent Magnet Synchronous Motors (PMSMs) are widely adopted in various applications due to their outstanding performance, particularly their high efficiency. The reasons for the high efficiency of PMSMs can be analyzed in detail from several perspectives:

1. No Electrical Excitation Loss

PMSMs use permanent magnets (such as Neodymium-Iron-Boron) to generate the magnetic field, eliminating the need for excitation current. This eliminates the copper losses associated with excitation currents, significantly enhancing the overall efficiency of the motor.

2. Simple Structure, Reduced Mechanical Losses

The structure of PMSMs is relatively simple, with no brushes or slip rings, which reduces friction losses. Additionally, the rotor of a PMSM does not require windings, further lowering mechanical and rotor losses.

3. High Power Density

The high magnetic energy product of permanent magnet materials allows PMSMs to have a high power density. High power density means that more power can be output from the same volume, thereby increasing the motor's efficiency.

4. Efficient Magnetic Circuit Design

Modern PMSMs utilize advanced computational and optimization techniques in magnetic circuit design to ensure the shortest path for magnetic flux and minimal magnetic leakage. This optimized design reduces magnetic losses and improves the efficiency of the motor.

5. Low Rotor Losses

The rotor of a PMSM is usually composed of permanent magnets and magnetic materials without windings, leading to very low rotor losses. This contrasts sharply with traditional induction motors, where rotor windings generate significant losses.

6. High-Efficiency Control Algorithms

PMSMs are often used with efficient control algorithms such as Vector Control or Direct Torque Control (DTC). These algorithms precisely control the motor's magnetic field and torque, improving dynamic performance and efficiency.

7. Temperature Management

PMSMs are typically designed with good thermal management in mind, using advanced cooling materials and designs to effectively manage the motor's operating temperature, preventing efficiency loss due to overheating.

8. Choice of Magnetic Materials

High-performance permanent magnet materials such as Neodymium-Iron-Boron (NdFeB) have high magnetic energy product and coercivity, providing a strong magnetic field in a small volume and thus improving motor efficiency.

9. Low Harmonic Losses

PMSMs are usually designed to have a sinusoidal back electromotive force (EMF) waveform, resulting in fewer harmonic components. This leads to lower harmonic losses during operation, thereby enhancing overall efficiency.

10. Higher Power Factor

PMSMs generally have a higher power factor, meaning that the motor consumes less reactive power during operation, reducing ineffective electrical energy consumption and improving overall energy utilization efficiency.

11. Broad Application Adaptability

PMSMs can maintain high efficiency over a wide range of speeds, making them widely applicable in various fields such as electric vehicles, industrial servo systems, and household appliances. In these applications, PMSMs can fully exploit their high-efficiency advantages.

In summary, the high efficiency of PMSMs results from a combination of factors, including the absence of electrical excitation losses, simple structure, low mechanical losses, high power density, efficient magnetic circuit design, low rotor losses, high-efficiency control algorithms, advanced temperature management, high-performance magnetic materials, low harmonic losses, high power factor, and broad application adaptability. These factors collectively make PMSMs perform excellently in various applications and represent a significant direction in the development of high-efficiency motor technology.

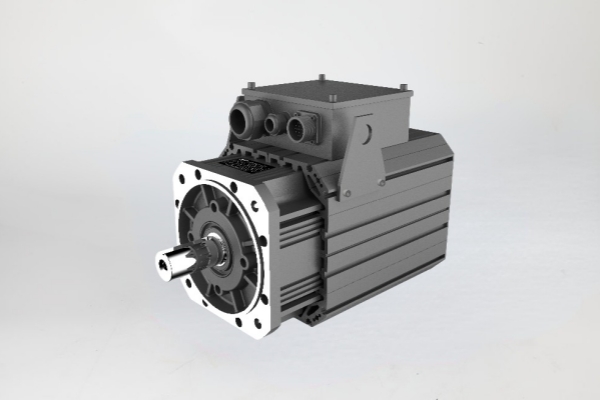

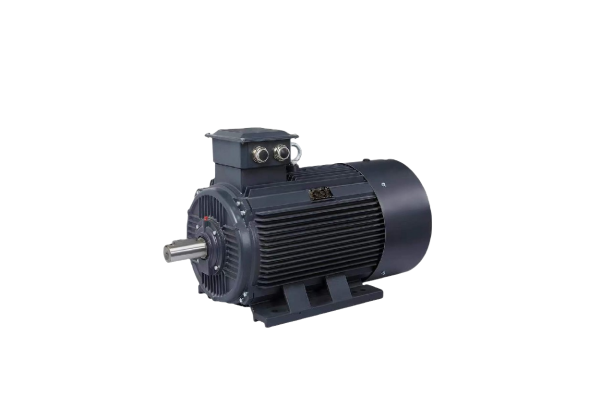

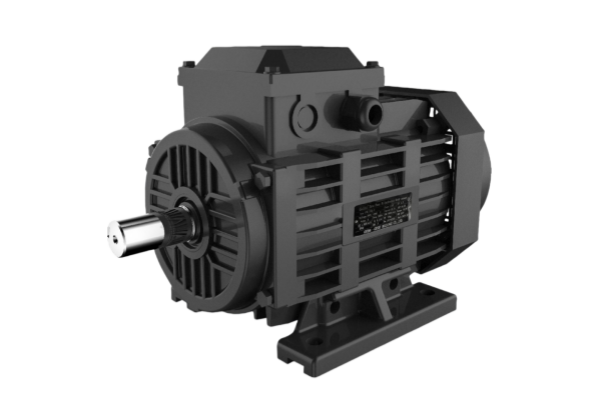

We Germana supply HQ permanent magnet motors and synchronous reluctance motors. If you are interested in these products, please feel free to contact our sales team.
