Top 20 questions about electric motor insulation

1.What is the purpose of insulation in electric motors?
The primary purpose of insulation in electric motors is to prevent current leakage, ensure proper current flow within the stator windings, reduce current losses, and prevent short circuits between windings or to the ground, thereby ensuring the safe and reliable operation of the motor.

2.How does insulation affect the performance of an electric motor?
The quality and integrity of insulation directly affect the efficiency and lifespan of an electric motor. Good insulation can reduce energy losses, increase motor efficiency, and prevent winding damage.

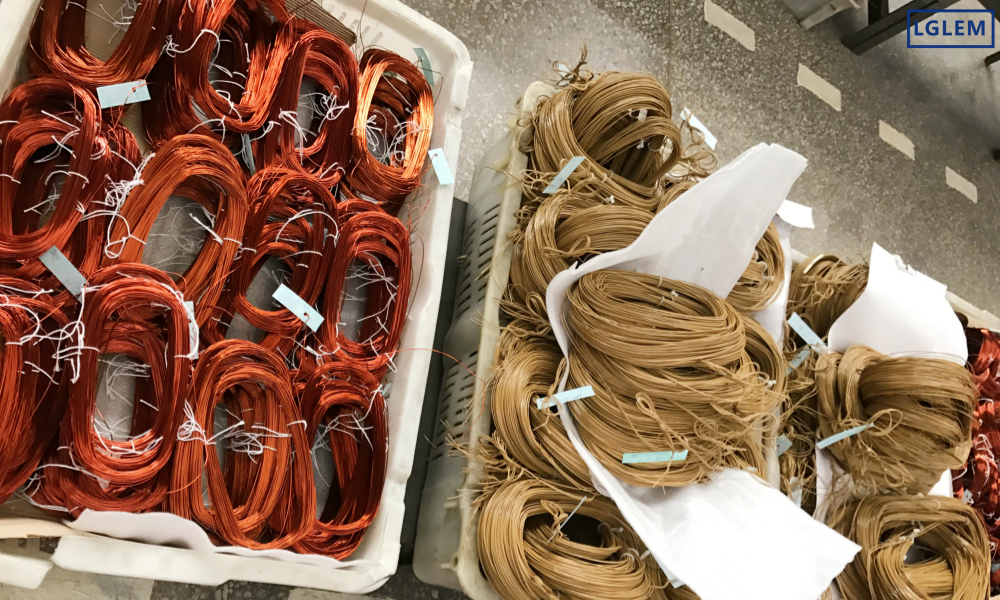

3.What types of insulation materials are commonly used in electric motors?
Common insulation materials include polyester, epoxy resin, mica, and fiberglass. These materials are used to coat windings or as interlayer insulation to enhance the motor's dielectric and thermal properties.

4.How is the insulation class of an electric motor determined?
The insulation class of an electric motor is determined by the thermal performance of its design and the insulation materials used. Standard insulation classes include A, E, B, F, H, and C, each representing a different maximum allowable operating temperature.

5.What are the different classes of motor insulation, and how do they differ?
Different insulation classes denote the maximum temperatures that motors can withstand. For example, Class A insulation has a maximum temperature of 105°C, while Class H insulation has a maximum temperature of 180°C. Higher insulation classes indicate better heat resistance.

6.How does the insulation class affect the operating temperature of an electric motor?
The insulation class determines the maximum operating temperature of the motor. Choosing the appropriate insulation class ensures the motor can operate safely within the expected environmental temperature without overheating.

7.What are the typical signs of insulation failure in an electric motor?
Signs of insulation failure include motor overheating, winding short circuits, a decrease in resistance between windings, unusual noises, or a decline in motor performance.

8.How can insulation degradation be prevented or minimized in electric motors?
Regular maintenance, keeping the motor clean, avoiding overload operation, ensuring good ventilation and environmental conditions, and conducting periodic insulation testing can help prevent insulation degradation.

9.What are the consequences of insulation failure in an electric motor?
Insulation failure can lead to motor overheating, winding damage, motor shutdown, and even potential fire hazards.

10.How is the insulation resistance of an electric motor measured?
The insulation resistance of an electric motor is measured using a megohmmeter (insulation resistance tester) to evaluate the insulation's condition by measuring the resistance between windings or windings to ground.

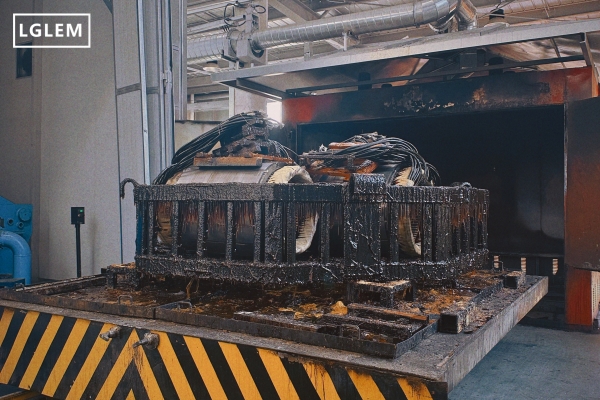

11.What is the role of varnishing or impregnation in motor insulation?
Varnishing or impregnation processes enhance the mechanical strength of the windings, increase the insulation's ability to withstand environmental stresses, and reduce air gaps between windings, thereby improving insulation performance.

12.How often should insulation resistance testing be performed on electric motors?
Insulation resistance testing should be performed periodically, depending on the motor's operating environment and conditions. Generally, it is recommended to conduct tests at least once a year.

13.What are the common causes of insulation deterioration in electric motors?
Common causes include overheating, overloading, humidity, chemical exposure, vibration, mechanical damage, and natural aging.

14.How can the life expectancy of motor insulation be extended?
Regular maintenance, proper load management, avoiding overload operation, ensuring suitable environmental conditions, and timely repair of insulation damage can extend the insulation's life expectancy.

15.What are the best practices for repairing or replacing motor insulation?
First, perform a thorough inspection and testing to determine the extent of insulation damage. Then, apply appropriate repair or replacement methods to ensure the motor meets the expected performance and safety standards after repair.

16.How does moisture affect the insulation of electric motors?
Moisture can decrease the resistance of insulation materials, increase leakage currents, and lead to decreased motor performance or damage.

17.What are the safety considerations when dealing with motor insulation?
Ensure the motor is powered off, use appropriate protective equipment, and follow standard repair and testing procedures to prevent electric shock and other hazards.

18.How do vibration and mechanical stress impact the insulation of electric motors?
Vibration and mechanical stress can cause wear, cracking, or delamination of insulation materials, leading to winding short circuits or motor damage.

19.What are the environmental factors that can influence motor insulation?
Temperature, humidity, dust, chemicals, vibration, and mechanical stress are the primary environmental factors that can influence motor insulation.

20.What innovations or new materials are emerging in the field of motor insulation?
New materials include high-temperature-resistant polymers, nanocomposites, and eco-friendly insulation materials, which can improve the durability, efficiency, and environmental performance of motors.
