Insulated Bearings: Protecting Motors from Shaft Currents & Enhancing Reliability

Insulated Bearings: An Essential Component for Motor Protection

Insulated bearings are a critical solution for preventing shaft currents from damaging motor bearings, especially in modern industrial applications. These bearings are specifically designed to address the challenges posed by stray currents, which can lead to premature wear, noise, and even catastrophic motor failure. This article explores the types of motors requiring insulated bearings, their key functions, and factors to consider when selecting them.

1. Motors That Require Insulated Bearings

1.1 Variable Frequency Drive (VFD) Motors

Motors powered by VFDs are highly efficient and widely used in industrial automation. However, VFDs often generate high-frequency shaft currents due to the switching nature of the power supply. These currents can flow through the bearings, causing electrical discharge machining (EDM) and excessive wear. Insulated bearings act as a barrier to prevent such damage.

1.2 High-Voltage Motors

High-voltage motors operate at elevated voltages, making them prone to electrical noise and the generation of shaft currents. This can lead to pitting and fluting on bearing surfaces, significantly reducing motor reliability. Insulated bearings effectively mitigate this risk.

1.3 High-Power Motors

As motor power increases, so does the likelihood of leakage currents. In high-power motors, the strong electromagnetic fields can induce shaft currents that damage bearings. Insulated bearings provide the necessary protection to ensure smooth operation.

1.4 Generators

Generators are another key application for insulated bearings. During operation, electromagnetic interference can result in stray currents that damage bearings. Insulated bearings safeguard the generator’s performance and durability.

2. Functions of Insulated Bearings

2.1 Prevention of Shaft Current Damage

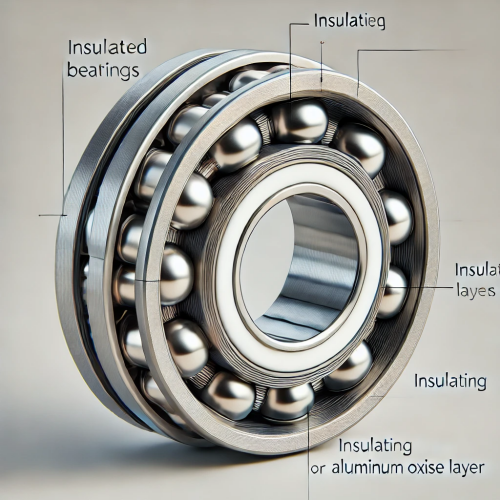

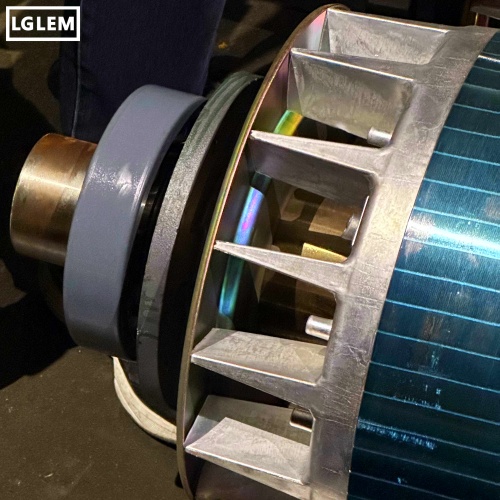

Insulated bearings prevent shaft currents from passing through the bearing by introducing an insulating layer, such as an aluminum oxide coating, on the inner or outer ring. Ceramic materials are also commonly used for this purpose. This isolation eliminates the current path, protecting the bearings from electrical erosion.

2.2 Extended Bearing Life

One of the most significant benefits of insulated bearings is their ability to prolong bearing life. By preventing electrical discharge, these bearings avoid surface damage such as pitting, fluting, and scoring, ensuring reliable performance over a longer period.

2.3 Enhanced Motor Reliability

Insulated bearings reduce vibrations and noise caused by electrical damage, resulting in smoother operation. They also minimize unexpected downtime, making motors more reliable and efficient in industrial environments.

3. How to Select Insulated Bearings

Choosing the right insulated bearing depends on the motor’s application, operating environment, and specific requirements:

3.1 Coated Bearings

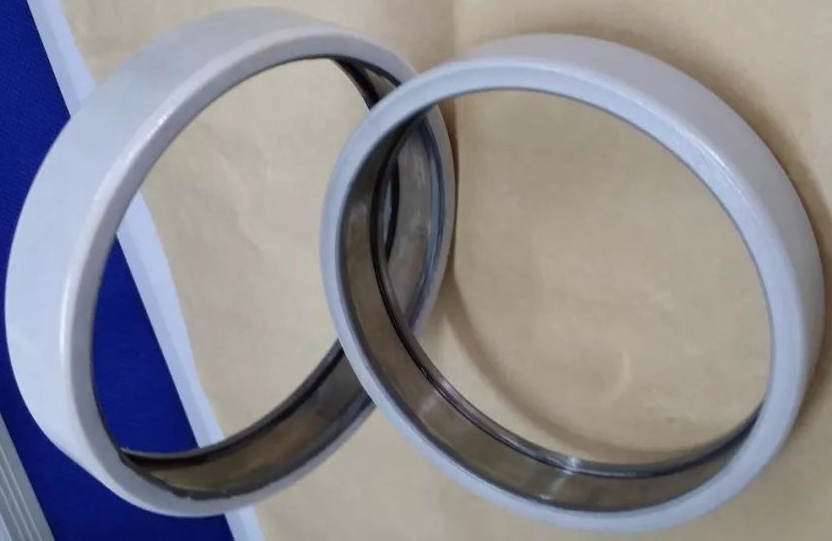

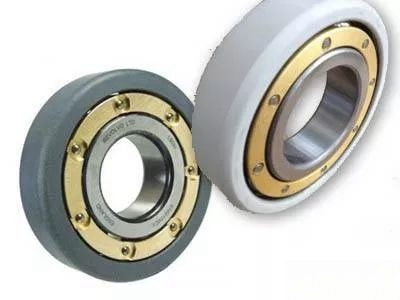

Coated bearings are cost-effective and suitable for general industrial applications. They feature a thin insulating layer applied to the bearing rings, which effectively blocks shaft currents under standard conditions.

3.2 Ceramic Bearings

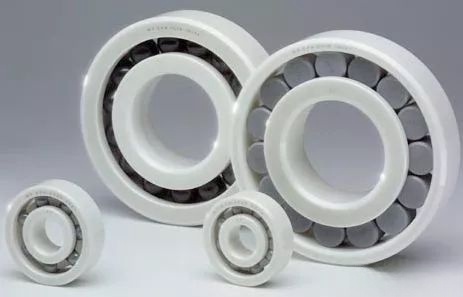

For more demanding environments, ceramic bearings are an excellent choice. These bearings use ceramic rolling elements or ceramic-coated rings, offering superior insulation and high resistance to temperature, speed, and voltage fluctuations. They are ideal for high-performance motors, such as those used in renewable energy systems or high-speed machinery.

Insulated bearings are indispensable for modern motors, particularly those operating with VFDs, at high power levels, or in high-voltage conditions. Their ability to prevent shaft current damage, extend bearing life, and enhance motor reliability makes them a preferred solution for industrial applications. Selecting the right type of insulated bearing based on operating conditions ensures optimal motor performance and long-term stability, safeguarding investments in industrial equipment.
