How to Optimize High-Efficiency Motor Design and Manufacturing: Key Strategies to Boost Performance and Reduce Losses

Optimizing the design and manufacturing of high-efficiency motors involves several key strategies aimed at improving energy performance, reducing losses, and increasing reliability. Here are some essential considerations:

1. Material Selection

High-Quality Magnetic Steel: Using superior-grade electrical steel reduces core losses and improves efficiency.

Copper Windings: Copper has lower resistance compared to aluminum, which minimizes energy losses in windings.

Permanent Magnets: In certain motors, rare-earth magnets such as neodymium can significantly enhance efficiency.

2. Advanced Design Techniques

Optimized Rotor/Stator Design: Design modifications like increasing the number of rotor bars or improving lamination can reduce losses and boost motor performance.

Finite Element Analysis (FEA): This simulation technique allows engineers to model electromagnetic fields and thermal properties to fine-tune motor designs.

Reduced Air Gap: Minimizing the gap between rotor and stator lowers magnetizing current and improves motor efficiency.

3. Improved Cooling Systems

Efficient cooling methods, like forced air or liquid cooling, prevent overheating and ensure better motor performance and longevity.

4. Precision Manufacturing

Tighter Tolerances: Manufacturing with precision reduces friction and mechanical losses.

Quality Control: Regular testing and inspection during production maintain consistency in motor performance.

5. Variable Frequency Drives (VFDs)

Incorporating VFDs helps adjust the motor's speed to match load requirements, further enhancing energy efficiency.

6. Use of Advanced Insulation Materials

High-Temperature Insulation: Employing advanced insulation materials, such as mica-based systems or thermosetting resins, allows motors to operate at higher temperatures without degrading efficiency. This extends the motor's lifespan and ensures reliable performance.

Low-Loss Laminations: Using thinner, high-silicon steel laminations can reduce eddy current losses in the core, improving overall motor efficiency.

7. Reduction of Friction and Windage Losses

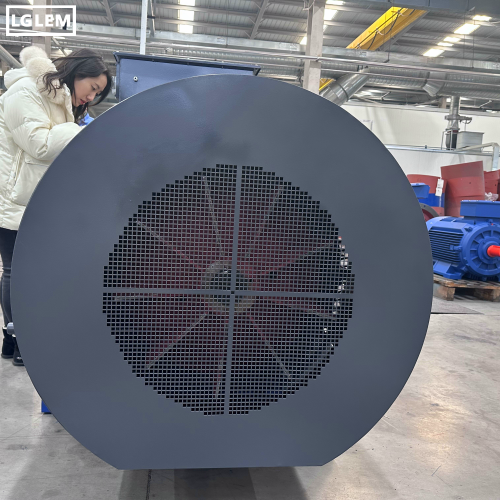

Aerodynamic Design: Streamlining the motor’s external and internal components can minimize windage losses. For example, shaping cooling fans and enclosures reduces air resistance.

Low-Friction Bearings: Using high-precision, low-friction bearings can reduce mechanical energy losses, improving efficiency and extending the motor’s operational life.

8. Enhanced Motor Control Systems

Smart Motor Control: Implementing smart control algorithms that adjust torque and speed based on load demand can greatly enhance efficiency, especially in variable load applications.

IoT Integration: Modern motors can integrate with IoT (Internet of Things) systems to provide real-time data on performance, energy use, and maintenance needs. This enables predictive maintenance, reducing downtime and energy waste.

9. Optimized Manufacturing Processes

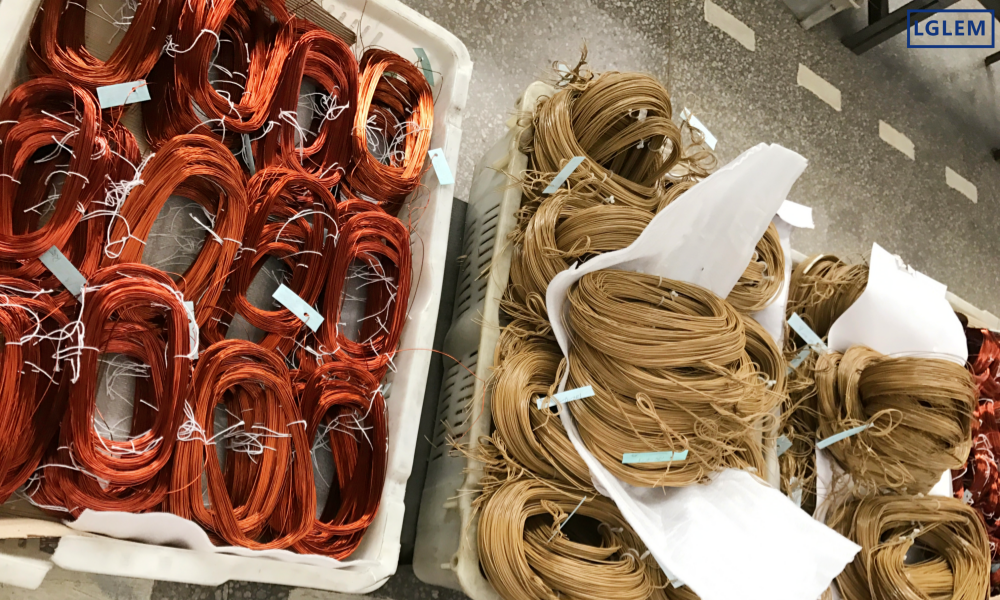

Automated Winding and Assembly: Automating the winding and assembly processes ensures greater consistency in motor builds, reducing variations that can lead to inefficiencies.

Lean Manufacturing: Adopting lean manufacturing principles helps reduce waste and improve efficiency in production processes. This includes minimizing material waste, energy consumption, and idle time during production.

10. Energy Recovery and Regenerative Systems

Regenerative Braking: In applications like electric vehicles or industrial machinery, regenerative systems can capture energy during braking and return it to the power grid or battery, reducing overall energy consumption.

Energy Storage Systems: Coupling high-efficiency motors with energy storage solutions allows for more balanced energy usage, storing excess energy during low-load periods for use during peak demands.

11. Adherence to International Standards

Efficiency Certifications: Ensuring compliance with standards like IEC, NEMA, or ATEX not only boosts credibility but ensures the motor meets the latest energy efficiency regulations, such as IE2, IE3, and IE4 classifications.

Lifecycle Analysis: Conducting a lifecycle analysis helps manufacturers understand the environmental impact of the motor from production to disposal, enabling the design of more sustainable products.

12. Sustainable Manufacturing

Eco-friendly Production: By reducing the environmental impact of materials and processes, manufacturers can make motors that are not only efficient in energy consumption but also sustainable in production.

Through these advanced methods, motor design and manufacturing can be optimized for both high efficiency and long-term sustainability, meeting the demands of modern industry and environmental regulations.
