How to Identify Motors with Aluminum vs. Copper Windings: Practical Tips and Methods

To identify whether a motor has aluminum or copper windings, here are a few methods you can use:

1.Color of the Windings:

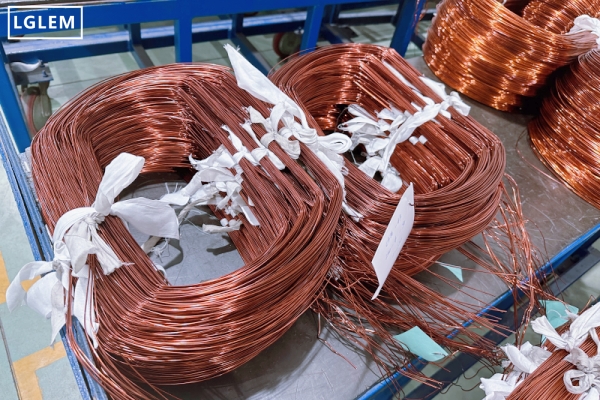

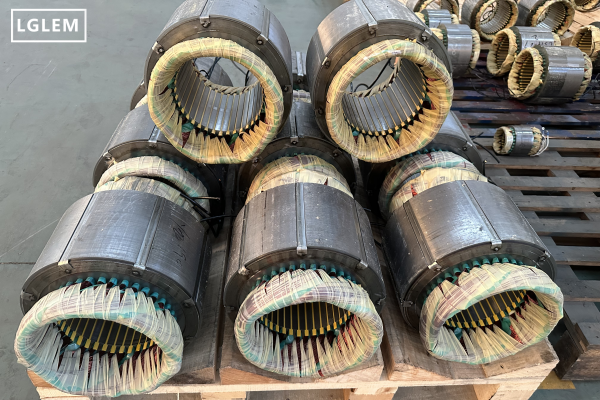

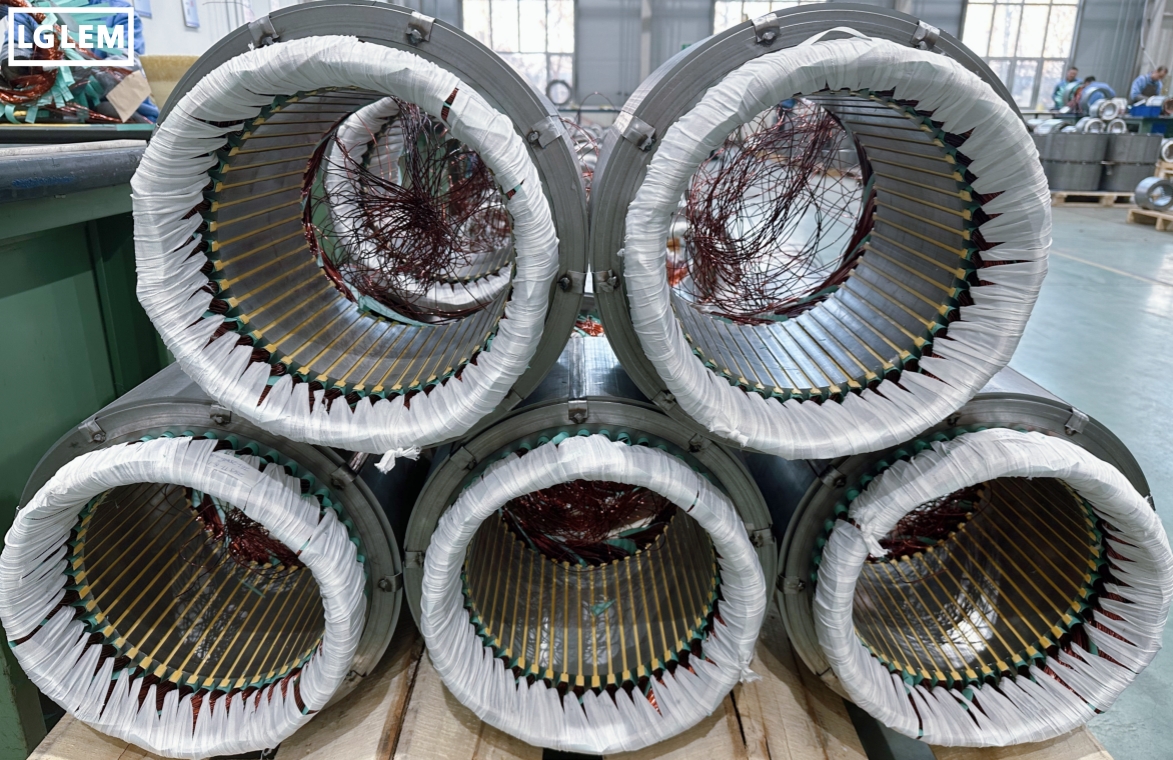

Copper windings typically have a reddish-brown or golden color.

Aluminum windings are usually silver or dull grey in appearance.

2.Weight:

Motors with copper windings are heavier than those with aluminum, as copper has a higher density.

3.Resistance Measurement:

Copper has lower electrical resistance compared to aluminum. Using an ohmmeter to measure the winding resistance can help:

Lower resistance typically indicates copper windings.

Higher resistance suggests aluminum windings.

4.Magnet Test:

Aluminum is non-magnetic, while copper is also non-magnetic. However, checking if the material reacts to a magnet can confirm if the winding material is non-ferrous.

5.Price and Quality:

Motors with copper windings are generally more expensive and efficient compared to aluminum ones. If the motor is more affordable, it might use aluminum windings.

6.Labels and Specifications:

Check the motor’s nameplate or documentation. It often specifies whether the windings are copper or aluminum.

7.Density Test:

You can perform a density test by cutting a small piece of the winding (if allowed). Weigh the piece and measure its volume.

Copper has a density of 8.96 g/cm³.

Aluminum has a density of 2.7 g/cm³.

A significant difference in weight for the same volume will indicate whether it’s copper or aluminum.

8.Thermal Properties:

Copper windings dissipate heat more efficiently than aluminum due to copper's higher thermal conductivity.

Motors with copper windings usually stay cooler under similar load conditions, while aluminum windings may lead to higher operating temperatures.

9.Acid Test:

Carefully apply a small amount of nitric acid to a piece of the winding.

Copper will dissolve slowly in nitric acid and turn the solution blue-green.

Aluminum will dissolve more rapidly, producing hydrogen gas, without coloring the solution.

10.Durability and Wear:

Copper windings are more resistant to bending, stretching, and wear over time compared to aluminum. Aluminum is softer and more prone to damage during handling or operation.

11.Magnetic Eddy Current Testing:

You can use a non-destructive testing method like eddy current testing to check the winding material. Copper produces different eddy currents compared to aluminum, allowing identification without disassembly.

12.Ultrasonic Testing:

An ultrasonic thickness gauge can sometimes identify different metals based on sound velocity. Copper and aluminum will respond differently due to their distinct material properties.

These methods are useful depending on the level of access you have to the motor and the tools available.
