How Motor Rotor Balancing Speed Impacts Final Dynamic Balance Effect

Is the Final Balancing Effect of Motor Rotor Dynamic Balancing Related to the Balancing Speed?

In the operation of industrial equipment, motors are essential core power sources. Among the components of a motor, the balance of the rotor directly affects the motor's performance, lifespan, and safety. Dynamic balancing is a key technique to ensure the smooth operation of the motor rotor during high-speed rotation. A common question in practical applications is whether the final balancing effect of the motor rotor is related to the speed used during the balancing process. To answer this, we need to delve into the principles of motor dynamic balancing, the balancing process, and its relationship with speed.

1. The Basics of Motor Rotor Dynamic Balancing

During the manufacturing process, it is inevitable that the mass distribution of the motor rotor will be uneven, which causes an imbalance in centrifugal forces during rotation, leading to vibrations. The purpose of dynamic balancing is to detect and correct this imbalance by reducing or eliminating vibrations caused by rotor rotation.

Dynamic balancing can be divided into static balancing and dynamic balancing. Static balancing refers to correcting the imbalance of the rotor in a single plane while it is not rotating. Dynamic balancing, on the other hand, corrects imbalances in multiple planes while the rotor is spinning, which is especially crucial for high-speed motors that require more precise calibration.

2. The Role of Balancing Speed in the Dynamic Balancing Process

Speed is a key parameter in the dynamic balancing process. In dynamic balancing equipment, operators typically select an appropriate speed for calibration and detection. This speed selection is not arbitrary but is the result of precise calculation.

（1）Dynamic Balancing at Lower Speeds

In many cases, dynamic balancing is performed at lower speeds. This is because, as the speed increases, the centrifugal force caused by imbalance grows exponentially, leading to excessive vibrations that can affect measurement accuracy. At lower speeds, the centrifugal forces are smaller, allowing the balancing equipment to more stably and accurately detect the imbalance and correct it.

（2）The Need for High-Speed Dynamic Balancing

However, for certain high-speed motors, dynamic balancing at lower speeds may not be sufficient. This is because the imbalance characteristics of the rotor at high speeds differ from those at low speeds. When rotating at high speeds, the rotor not only experiences larger centrifugal forces but is also affected by aerodynamic forces and structural vibration modes. Therefore, high-speed motors sometimes require dynamic balancing at speeds close to the actual working speed to ensure the final balancing effect is validated under high-speed conditions.

3. The Relationship Between Speed and the Balancing Effect

The final effect of dynamic balancing depends not only on the accuracy of the balancing equipment and the process but also on the balancing speed. At different speeds, the dynamic characteristics of the rotor may change, especially when the motor operates at high speeds. The rotor’s vibration modes, rotational inertia, and other factors can significantly influence the balancing results.

(1)Limitations of Low-Speed Dynamic Balancing

While dynamic balancing at low speeds can effectively reduce imbalance vibrations, it may not fully represent the rotor's behavior at its actual operating speed. For instance, some rotors may perform well at low speeds, but once they reach high speeds, new imbalance vibrations may arise due to material properties, rotor structure flexibility, or air resistance. Therefore, low-speed dynamic balancing may not completely reflect the rotor’s dynamic behavior under high-speed conditions.

(2)The Importance of Operating Speed

To ensure motor stability in actual operation, the final dynamic balancing effect should be validated under conditions close to the motor's operating speed. This is because, at higher speeds, the rotor's stiffness and vibration modes may change significantly. This is particularly true for high-performance motors, where these changes have a notable impact on the balancing effect. Thus, the balancing speed during the dynamic balancing process should be adjusted according to the motor's operating speed to ensure the final effect remains effective in real-world applications.

4. Advancements in Dynamic Balancing Equipment and Technology

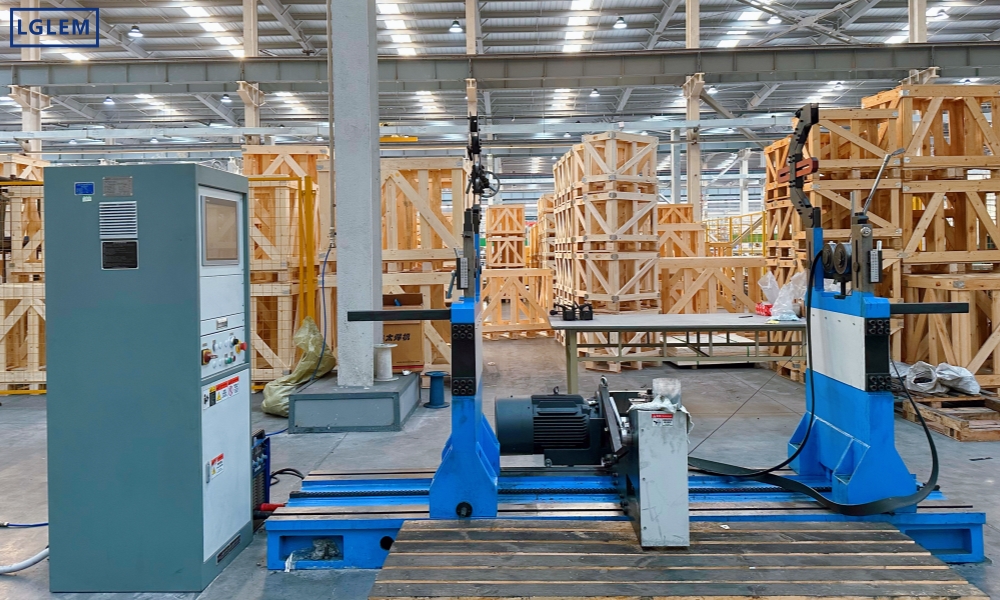

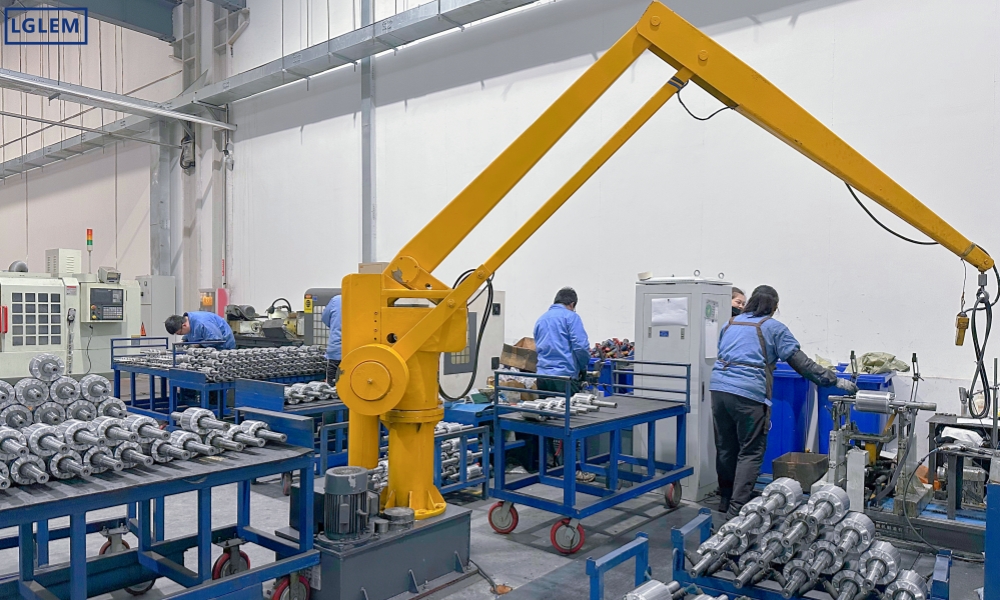

With advances in industrial technology, dynamic balancing equipment has also been continuously upgraded. Modern dynamic balancing machines can not only precisely control speed but also simulate rotor behavior under different working conditions, considering more factors during the balancing process. For example, some equipment can adjust the balancing speed according to the motor’s actual operating conditions or perform multiple measurements and corrections at different speeds to ensure the rotor remains balanced across the entire speed range.

In addition, modern dynamic balancing technology has adopted digital measurement systems, which can monitor rotor vibration in real-time and provide accurate correction schemes. These technological advancements make the dynamic balancing process more efficient and precise, offering stronger assurance for balancing high-speed motors.

5. Principles for Selecting Balancing Speed

In practice, the selection of balancing speed in dynamic balancing should take into account the following factors:

(1)Motor Operating Speed Range: The balancing speed should be as close as possible to the motor's operating speed. This is especially important for high-speed motors, where selecting a balancing speed near the operating speed can better reflect the rotor’s actual balancing effect in operation.

(2)Rotor Structural Characteristics: The balancing requirements may differ depending on the rotor’s structure. Flexible rotors and rigid rotors may require different balancing methods and speed selections. Flexible rotors usually need dynamic balancing at speeds closer to the working speed, while rigid rotors can be balanced at lower speeds.

(3)Vibration and Material Characteristics: The selection of balancing speed should also consider the material properties of the rotor and its vibration response at different speeds. In particular, the aerodynamic effects and elastic deformation of materials at high speeds may affect the final balancing result.

6. Conclusion

The dynamic balancing effect of motor rotors is closely related to the balancing speed. The proper selection of balancing speed is crucial for improving measurement accuracy and correction precision. Although dynamic balancing is often performed at lower speeds, to ensure the stability and safety of the motor under actual working conditions, the final balancing effect should be validated at speeds close to the motor’s operating speed. Advances in modern dynamic balancing technology and equipment provide strong support for more precise speed selection and a more effective balancing process, allowing motors to maintain smooth and efficient operation at various speeds.
