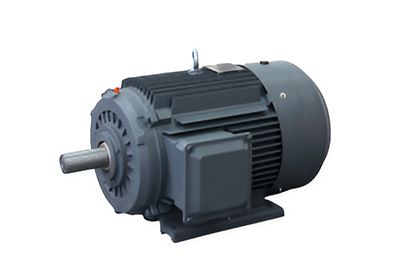

How to Determine the Number of Poles in an Electric Motor from Its Speed?

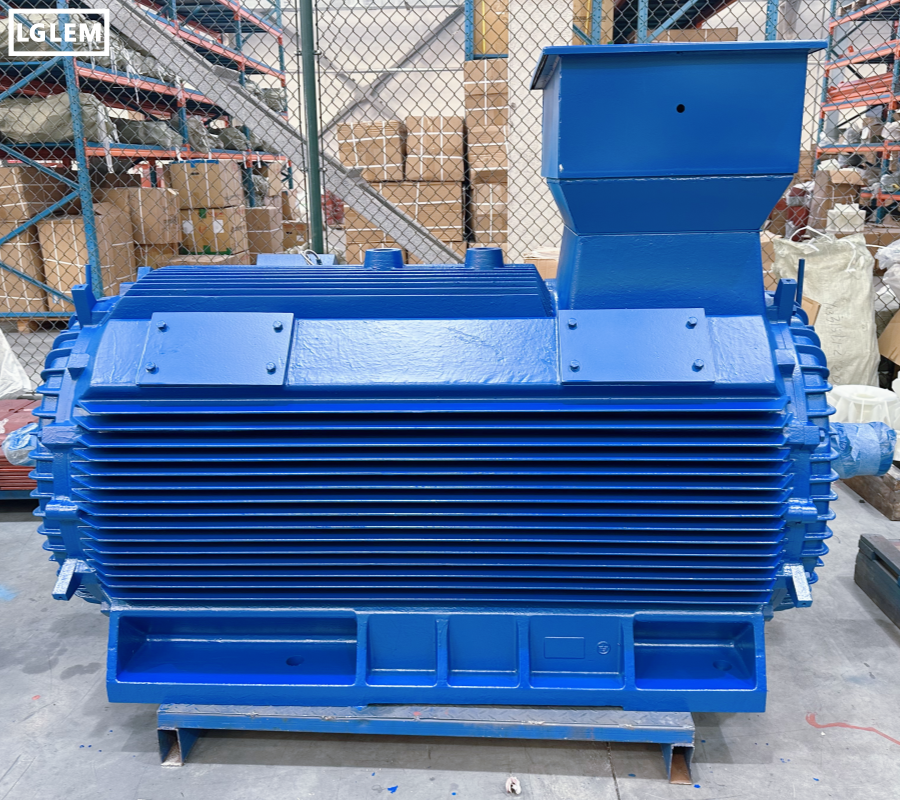

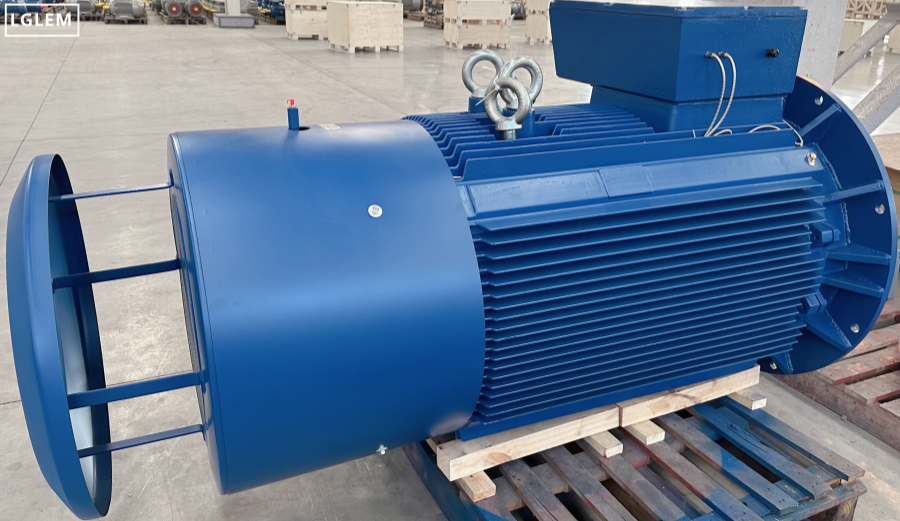

In the field of electrical engineering, understanding the number of poles in an electric motor is crucial for its optimal performance and application. The number of poles in a motor directly influences its speed, torque, and efficiency. This article provides an in-depth explanation of how to determine the number of poles in an electric motor based on its rotational speed.
What is the Number of Poles in an Electric Motor?

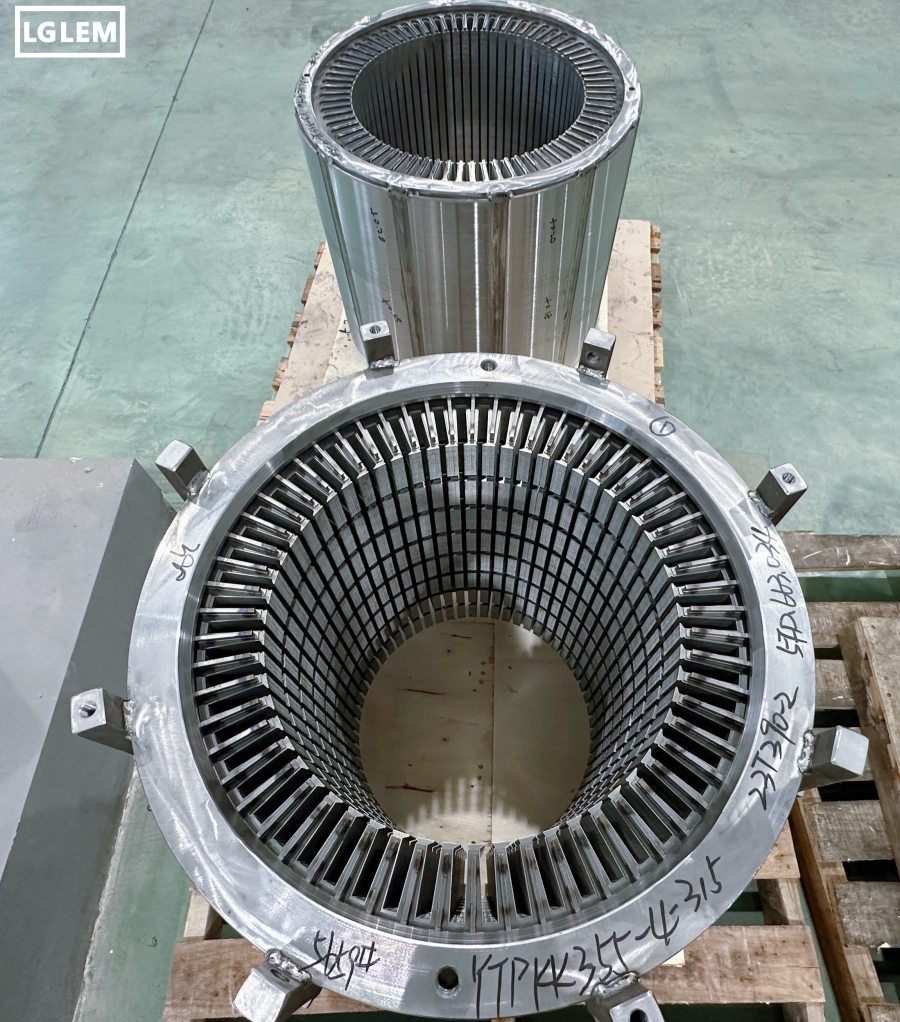

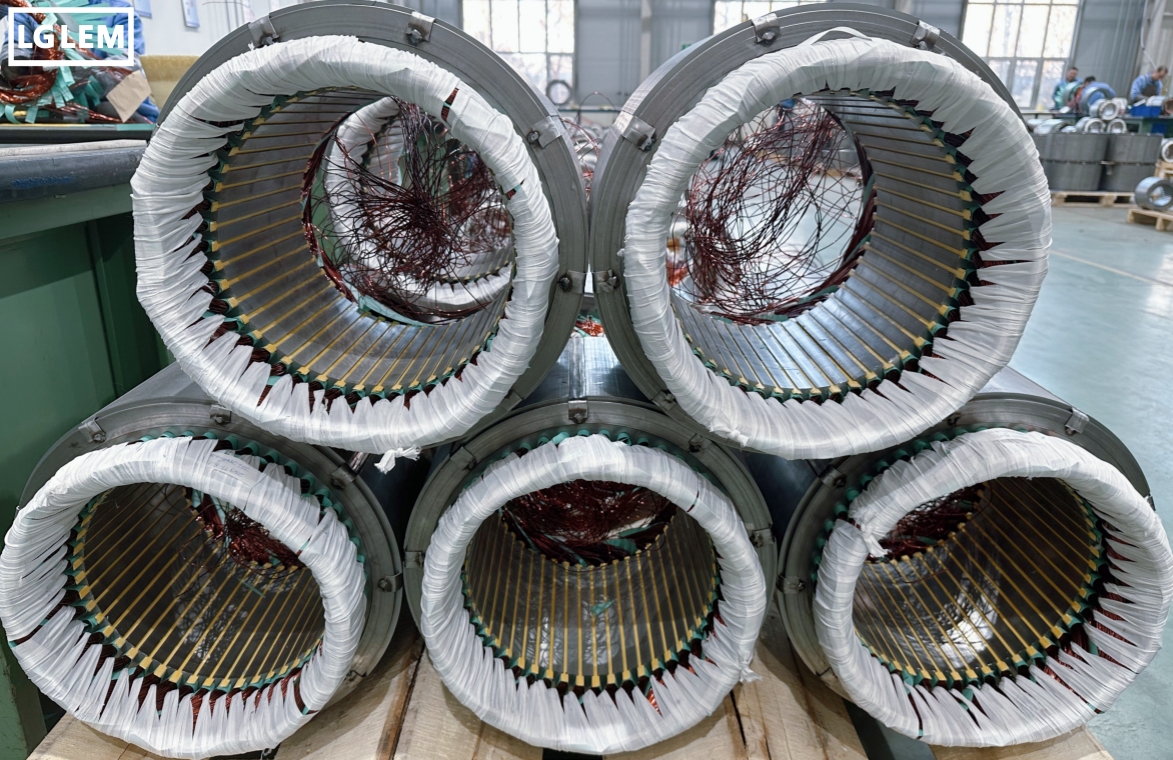

The number of poles in an electric motor refers to the number of magnetic pole pairs created by the stator windings. This is a fundamental parameter in motor design and affects the motor's synchronous speed. The number of poles is usually an even number (2, 4, 6, 8, etc.) because magnetic poles in the motor are always paired.
The Relationship Between Motor Speed and Number of Poles

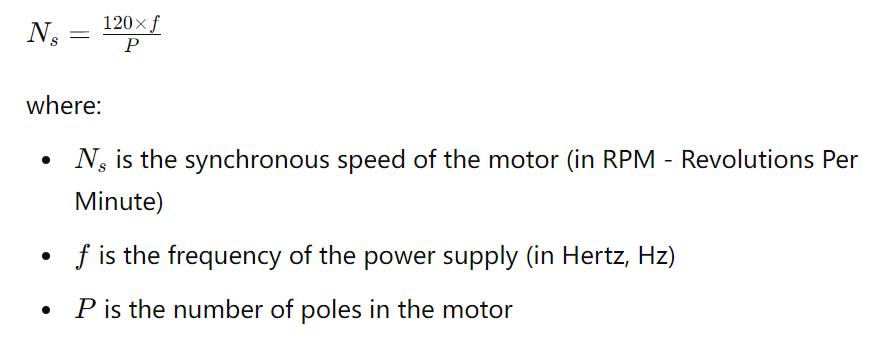

The synchronous speed of an electric motor is the theoretical speed at which the motor’s magnetic field rotates. It is determined by the frequency of the power supply and the number of poles in the motor. The formula for synchronous speed is:
This formula shows that, for a fixed power supply frequency, the synchronous speed of the motor is inversely proportional to the number of poles. In other words, a motor with more poles will have a lower synchronous speed.
Steps to Determine the Number of Poles Based on Motor Speed
1.Measure the Motor's Actual Speed
Use a precise tachometer or other reliable speed-measuring instrument to determine the motor’s actual speed. Ensure that this measurement is taken under normal operating conditions to obtain accurate data.
2.Determine the Power Supply Frequency
Identify the frequency of the power supply used by the motor. Most regions use power supplies with a frequency of either 50Hz or 60Hz. This information is typically available on the motor's specification plate or in the technical documentation.
3.Apply the Synchronous Speed Formula

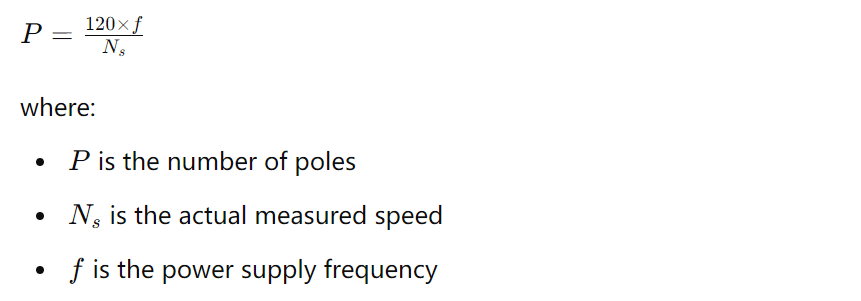

Use the following formula to calculate the number of poles in the motor:
4.Perform Calculation and Verification
Substitute the measured speed and known frequency into the formula to calculate the number of poles. The result should be an even number that matches the motor’s specifications. If the calculated number of poles does not align with the motor’s actual specifications, you may need to recheck the speed measurement or confirm the power supply frequency.
Practical Considerations
●Load Impact: The actual speed of the motor may be affected by the load, especially under heavier loads. For more accurate results, measurements should ideally be taken when the motor is running with minimal load.
●Frequency Stability: Ensure that the power supply frequency is stable, as fluctuations in frequency can affect the calculation of synchronous speed.
●Motor Type: Different types of motors (such as induction motors and synchronous motors) may have different characteristics. Understanding the motor type can provide additional context for interpreting the results.
Example Case Study

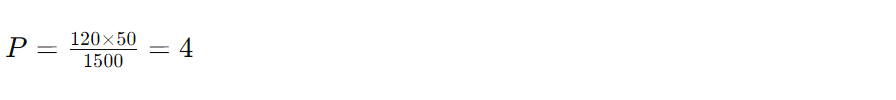

Consider a motor operating at an actual speed of 1500 RPM with a power supply frequency of 50Hz. Using the formula, we can calculate the number of poles as follows:
This indicates that the motor has 4 poles. In this case, the motor’s synchronous speed at 50Hz would be 1500 RPM. Such calculations help engineers verify motor specifications and ensure proper application in various settings.
Conclusion
Determining the number of poles in an electric motor by measuring its speed and knowing the power supply frequency is a practical and effective method. Mastering this technique allows for better decision-making when selecting and applying motors, ensuring they perform efficiently in their intended applications.
