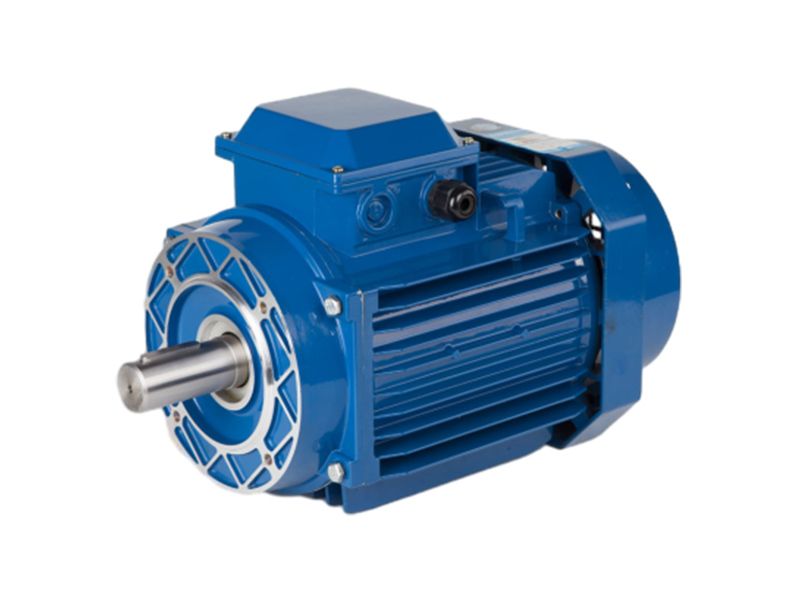

Aluminum Body Square-Type Variable Frequency 3-Phase Motor

Aluminum Body Square-type Variable Frequency Three-phase Asynchronous Motor

Frame

H63-H132mm

Power Range

0.12KW-7.5KW

Constant torque frequency range

5-50HZ

Constant power frequency range

50-100HZ

Installation mode

B3, B5, B14, B35, B34

Class of insulation

Protection grade

IP54/ IP55

Efficiency)

IE1

Characteristics

YVP series aluminum housing variable frequency three-phase asynchronous motor is suitable for variable frequency speed-regulation control system in inverter power supply. This is a new series of product unified designed in China and can be matched with all kinds of SPWM variable frequency speed regulation device and is equipped with a cooling fan which ensure the motor for good cooling under different rotational speed.

Application

This series motors can be widely used in textile, printing and dyeing, locomotive, metallurgy, transportation, chemical industry, miners and other industries and fan, pump and other occasions, the energy-saving speed motor has the advantages of energy saving, wireless wide speed range, low noise, small vibration and mechanical characteristics of low and constant torque output, high speed constant power output having good versatility and interchangeability.

Ordering Information

● This catalogue is for the user's information only. Please excuse that if there are any changes to the product, no additional notes will be made in advance.

● When ordering, please note the rating data, such as motor type, power, voltage, speed, insulation class, protection class, mounting method, etc.

● We can design and manufacture special motors according to customer requirements as follows

1. Special voltages, frequencies and powers

2. Special insulation and protection classes

3. With left-hand terminal box, double shaft ends and special shafts

4. High temperature motors or low temperature motors.

5. Highland or outdoor use

6. Higher power or special service factors

7. With heating, bearings or windings pt100, ptc, etc.

8. With encoder, isolated bearings or isolated bearing construction.

9. Other requirements.
